54 series Pressure switches (J54S Models 610-616)

https://www.doger.com/web/image/product.template/10695/image_1920?unique=9108949

J54S: Skeleton construction; One SPDT output; hex adjustment with no reference dial

Brass bellows with nickel-plated brass 1/4” NPT (female) pressure connection; Model 126 has a zinc-plated steel spring exposed to media.

  • Pressure parameters .

This combination does not exist.

United Electric Controls
Pressure switches, temperature switches, thermocouples, RTDs, pressure and temperature transmitters, gas detection

OEMs can choose from standard models with a variety of options or work with our application engineers to custom design a product solution.
Typical applications that utilize the 54 Series include medical and laboratory equipment, precision cutting machinery, fire protection, mobile hydraulic units, and heating equipment.

Parameters available in the datasheet of the documents section


Specifications for 54 series Pressure switches (J54S Models 610-616)

Pressure parameters . 610 - Set Point Range: 75 to 1000 psi /Deadband: 30 to 150 psi /Over Range Pressure: 6000 psi / Proof pressure: 10,000 psi or 612 - Set Point Range: 125 to 3000 psi /Deadband: 40 to 250 psi /Over Range Pressure: 6000 psi / Proof pressure: 10,000 psi or 614 - Set Point Range: 700 to 6000 psi /Deadband: 50 to 400 psi /Over Range Pressure: 6000 psi / Proof pressure: 10,000 psi
UEONLINE 54 Series Datasheet_compressed.pdf
Download
  • Compact size
  •  Choice of one or two switch outputs
  •  Reference dial or hex screw-type setting
  • Optional 1/2” NPT (male) by 1/8” NPT (female) polysulfone pressure connection
  • Optional external manual reset
  •  NEMA 1 or open frame (skeleton) versions for OEM applications
  •  Brass bellows models

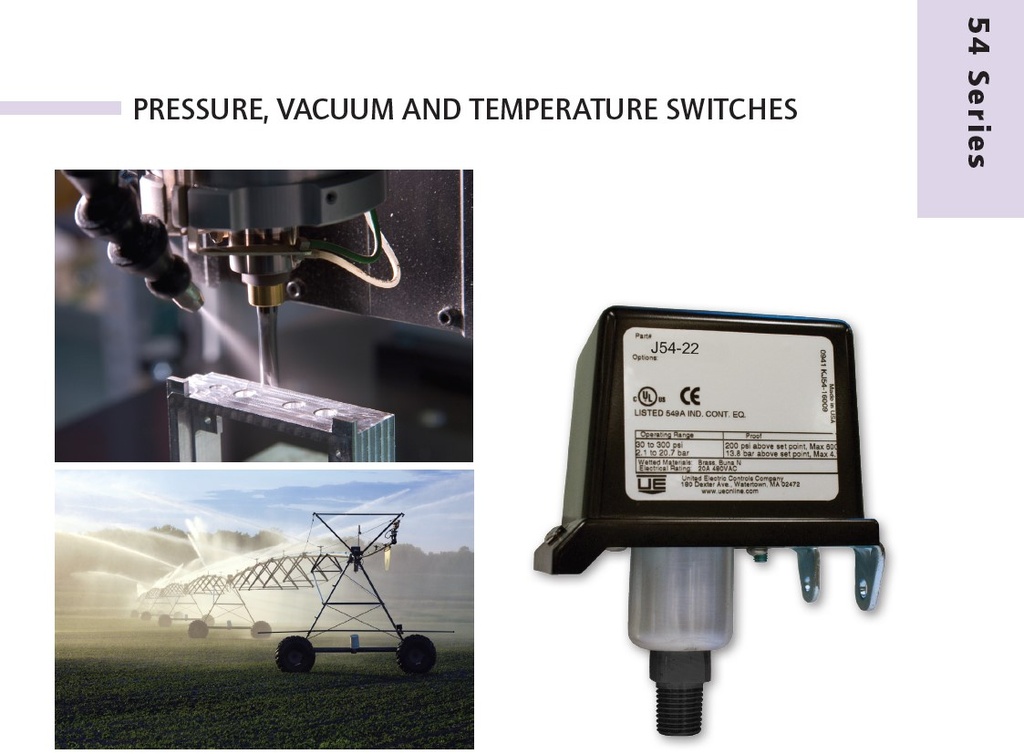

Product Image
