  2. UE Controls 400 Series Temperature switches (Type B400,Single switch output, immersion stem, internal adjustment via reference dial, Models 120-121 )

UE Controls 400 Series Temperature switches (Type B400,Single switch output, immersion stem, internal adjustment via reference dial, Models 120-121 )

https://www.doger.com/web/image/product.template/10825/image_1920?unique=66fbfb5

The 400 Series is a versatile family of vacuum, pressure, differential pressure and temperature switches for applications that require single or multiple switching capabilities.

  • Temperature parameters

This combination does not exist.

United Electric Controls
Pressure switches, temperature switches, thermocouples, RTDs, pressure and temperature transmitters, gas detection

Dual and triple switch versions provide multi-output for alarm and shutdown, pre-alarm and alarm, high/low limit or level staging functions.

Widely used throughout the process industries, the 400 Series provides threshold protection and control for many critical functions. Typical installations are found in industrial gas production, energy generation including pumps, turbines and compressors, pulp and paper, and water and wastewater treatment.



Specifications for UE Controls 400 Series Temperature switches (Type B400,Single switch output, immersion stem, internal adjustment via reference dial, Models 120-121 )

Temperature parameters 120 - Set Point Range: 0 to 225 °F /Max. Temperature: 275 °F /Scale Division: 5 °F / Stem Size: 9/16" x 1-7 ⁄ 8" nickel-plated brass or 121 - Set Point Range: 200 to 425 °F /Max. Temperature: 475 °F /Scale Division: 5 °F / Stem Size: 9/16" x 1-7 ⁄ 8" nickel-plated brass
UEONLINE 400 Series Datasheet.pdf
Download
  • UL listed and cUL certified. FM approved.
  • CE compliant to low voltage directive and pressure equipment directive.
  • Optional ATEX or EAC intrinsic safety compliance.
  • One, two or three switch outputs may be separated up to 100% of range.
  •  Wide variety of available options and pressure sensor modules.
  • Most models available for immediate delivery.
  • 1, 2 & 3 switch outputs
  • Epoxy-coated enclosure designed to meet enclosure type 4X
  • Wide variety of pressure sensors and materials
  •  Setting via reference dial or hex screw adjustment
  •  FM approved
  • Adjustable Ranges: "WC ranges: 300 "wc vacuum to 250 “wc pressure (-746,7 to 622,3 mbar) Pressure: 30 “Hg Vac to 6000 psi (-1,0 to 413,7 bar)
  • Differential Pressure: 1"wcd to 200 psid (2.5 mbar to 13,8 bar)
  • Temperature: -125 to 650 °F (-87.2 to 343.3 °C

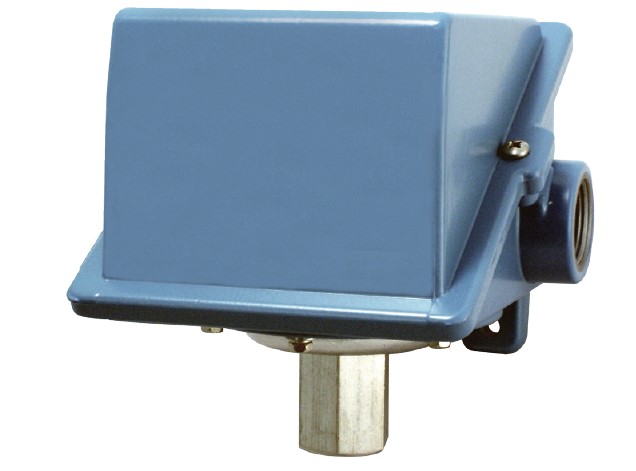

Product Image
UE Controls 400 Series Temperature switches (Type B400,Single switch output, immersion stem, internal adjustment via reference dial, Models 120-121 )
