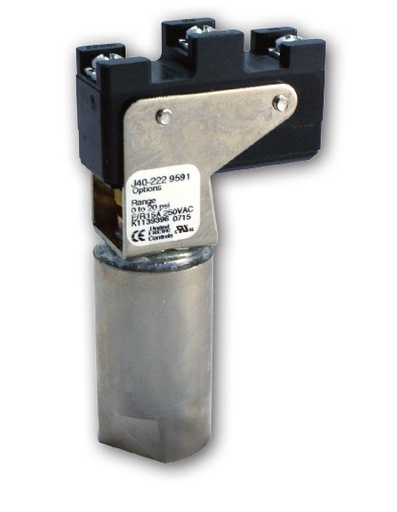

UE Controls J40 series skeleton Pressure and vacuum switches Model 218-230

https://www.doger.com/web/image/product.template/10395/image_1920?unique=0e079cb

The J40 can be utilized in OEM applications where compact
size and performance are required.

Phosphor bronze bellows with brass 1/4” NPT (female) pressure connection

$ 127.00 127.0 USD $ 127.00

127.00 USD

  • Pressure parameters .

This combination does not exist.

United Electric Controls
Pressure switches, temperature switches, thermocouples, RTDs, pressure and temperature transmitters, gas detection

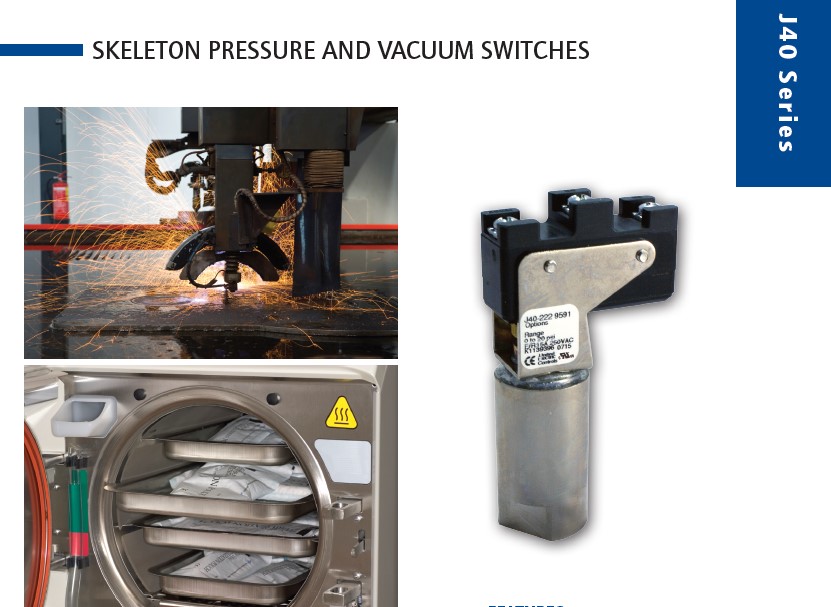

The sealed bellows
sensor provides a “leak-free” sensor for applications where elastomers are unacceptable. Proven reliability involving
sterilizers, plasma-cutting, anesthesia equipment, and even protective switching devices for power equipment, have made the J40 a versatile OEM pressure switch.

Parameters available in the datasheet of the documents section

Specifications for UE Controls J40 series skeleton Pressure and vacuum switches Model 218-230

Pressure parameters . 218 -Set Point Range: 30” Hg Vac to 0 /Deadband: 1 to 2.5” Hg Vac / Proof pressure: 5psi or 222 -Set Point Range: 0 to 20 psi /Deadband: 0.2 to 1.3 psi / Proof pressure: 30 psi or 224 -Set Point Range: 0 to 30 psi /Deadband: 0.2 to 1.3 psi / Proof pressure: 45 psi or 226 -Set Point Range: 0 to 50 psi /Deadband: 0.2 to 1.3 psi / Proof pressure: 75 psi or 230 -Set Point Range: 0 to 100 psi /Deadband: 1 to 2.3 psi / Proof pressure: 110 psi
  • Sealed metal bellows sensor
  • Brass or phosphor bronze wetted material
  • Compact size
  •  Easy external adjustment
  • Optional adjustable deadbandswitch
  • UL recognized for the US and Canada; CE compliant to LVD & PED.


  • Ambient temperature limits -40 to 160°F (-40 to 71°C)
  • Shock Set point repeats after 15 G, 10 millisecond duration
  • Vibration Set point repeats after 2.5 G, 5-500 CPS
  • Enclosure classification Not applicable
  • Set point repeatability ± 1% of full scale range
  • Switch output One SPDT; switch may be wired “normally open” or “normally closed”
  • Electrical rating 15 A 125/250 VAC resistive. Electrical switches have limited DC capabilities. Consult UE for additional information.
  • Enclosure Skeleton construction
  • Weight Approx. 4 oz.
  • Electrical connection Direct to switch terminals
  • Pressure connection Models 218-230: 1/4” NPT (female);
  • Models 256-274: 1/8” NPT (male)
  • Mounting Via NPT pressure connection




UE declarations and third-party issued Agency certifications are available for download at www.ueonline.com/prod_approval.

United States and Canada

  • UL Recognized, cUL Recognized
  • UL 508; CSA C22.2 No. 14, file #E42272
  • Canadian Registration Number (CRN): Refer to www.ueonline.com/certifications for list of approved models

EUROPE

  • Low Voltage Directive (LVD) (2006/95/EC)
  • UEC Compliant to LVD
  • Products rated lower than 50 VAC and 75 VDC are outside the scope of the LVD
  • The Low Voltage Directive does not apply to products for use in hazardous locations

Pressure Equipment Directive (PED) (97/23/EC)

  • Compliant to PED
  • Products rated below 7.5 psi are outside of the scope of the PED
