UE Controls 54 Series Pressure switches (H54 Models 22-28)

https://www.doger.com/web/image/product.template/10427/image_1920?unique=c9499f2

H54: NEMA 1 enclosure; One SPDT output; internal adjustment with reference dial
Brass bellows with nickel-plated brass 1/4” NPT (female) pressure connection; Model 126 has a zinc-plated steel spring exposed to media.

$ 1.00 1.0 USD $ 1.00

1.00 USD

  • Pressure parameters .

This combination does not exist.

United Electric Controls
Pressure switches, temperature switches, thermocouples, RTDs, pressure and temperature transmitters, gas detection

OEMs can choose from standard models with a variety of options or work with our application engineers to custom design a product solution.
Typical applications that utilize the 54 Series include medical and laboratory equipment, precision cutting machinery, fire protection, mobile hydraulic units, and heating equipment.

Parameters available in the datasheet of the documents section


Specifications for UE Controls 54 Series Pressure switches (H54 Models 22-28)

Pressure parameters . 22 -Set Point Range: 30” Hg Vac to 0 psi /Deadband: 1 to 3.5” Hg Vac /Over Range Pressure: 0 psi / Proof pressure: 50 or 24 -Set Point Range: 3 to 30 psi /Deadband: 0.4 to 1.5 psi /Over Range Pressure: 50 psi / Proof pressure: 200 Above set poin max 600 or 25 -Set Point Range: 10 to 100 psi /Deadband: 1 to 2.5 psi /Over Range Pressure: 100 psi above set point / Proof pressure: 200 Above set poin max 600 or 27 -Set Point Range: 30 to 300 psi /Deadband: 1.3 to 4 psi /Over Range Pressure: 100 psi above set point / Proof pressure: 200 Above set poin max 600 or 28 -Set Point Range: 50 to 500 psi /Deadband: 1.5 to 6 psi /Over Range Pressure: 100 psi above set point / Proof pressure: 200 Above set poin max 600

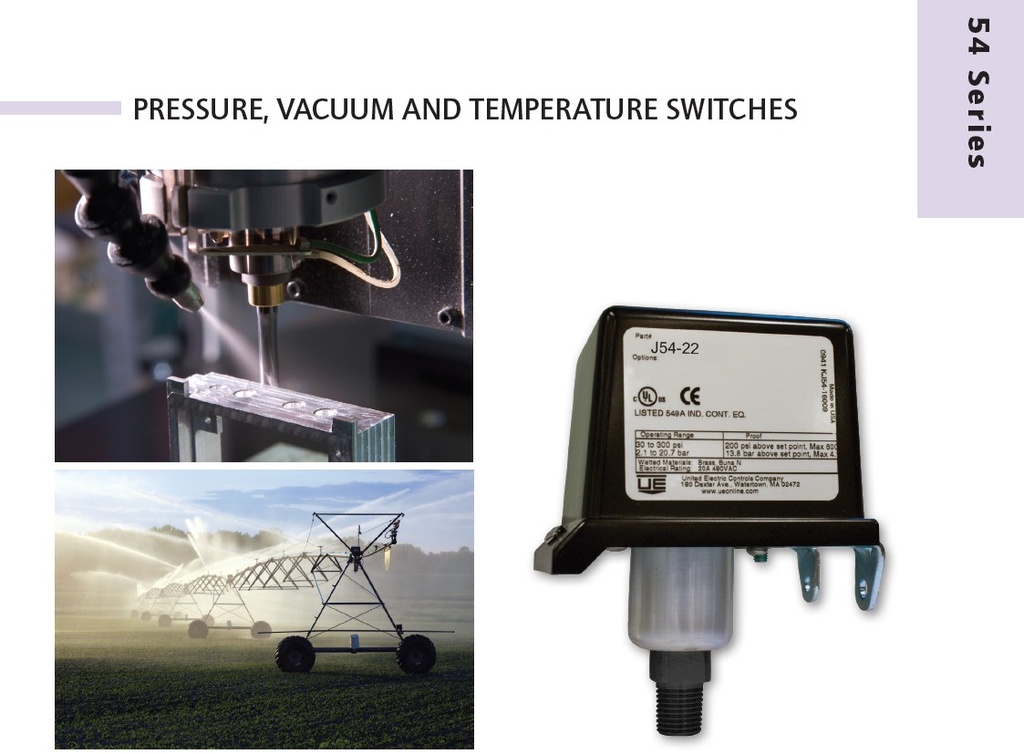

UEONLINE 54 Series Datasheet_compressed.pdf
Download
  • Compact size
  •  Choice of one or two switch outputs
  •  Reference dial or hex screw-type setting
  • Optional 1/2” NPT (male) by 1/8” NPT (female) polysulfone pressure connection
  • Optional external manual reset
  •  NEMA 1 or open frame (skeleton) versions for OEM applications
  •  Brass bellows models
