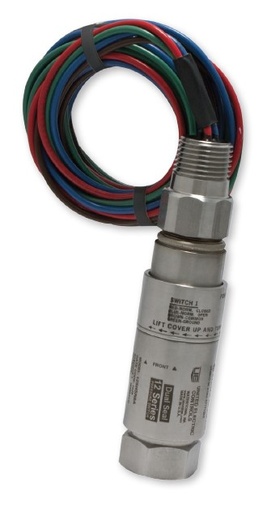

UE Controls 12 Series Pressure switches

https://www.doger.com/web/image/product.template/10386/image_1920?unique=7667920

12 Series hazardous location switches are ideal for operation in tough applications where space is at a premium.

$ 371.00 371.0 USD $ 371.00

328.00 USD

  • 12 Series Electrical Rating
  • 12 Series Switch Output
  • 12 Series Electrical Conduit
  • 12 Series Sensor type
  • Pressure parameters .

This combination does not exist.

United Electric Controls
Pressure switches, temperature switches, thermocouples, RTDs, pressure and temperature transmitters, gas detection

A snap-action Belleville spring assembly is used in most models to provide
vibration resistance and prolonged switch life. The 316 stainless steel enclosure and hermetically sealed switch provide rugged protection from the environment. Approved for use in hazardous locations worldwide, the 12 Series is installed within applications ranging from offshore oil rigs to rotating equipment, and more

Specifications for UE Controls 12 Series Pressure switches

12 Series Electrical Rating L: 1 amp or H: 5 amp
12 Series Switch Output S: SPDT or D: DPDT (not available on temperature models)
12 Series Electrical Conduit N: 1/2” NPT, male or M: M20 metric thread, male
12 Series Sensor type 2: 316 stainless steel 1/2” NPT (female) pressure connection and welded diaphragm or 3: 316L stainless steel 1/2” NPT (female) pressure connection, Teflon® coated Polyimide diaphragm with Buna N O-Ring or 4: 316L stainless steel 1/4” NPT (female) pressure connection, Teflon® coated Polyimide diaphragm with Buna N O-Ring or 5: 316L stainless steel 1/2” NPT (female) pressure connection and diaphragm, Viton® O-Ring or 6: 316L stainless steel 1/4” NPT (female) pressure connection and diaphragm, Viton® O-Ring or 7: 316L stainless steel 1/2” NPT (female) pressure connection and welded diaphragm or 8: 316L stainless steel 1/4” NPT (female) pressure connection, Teflon® coated Polyimide diaphragm with Buna-N O-Ring or 9: 316 stainless steel 1/2 NPT (female) pressure connection and welded diaphragm. or P: 316 stainless steel piston with Buna-N O-ring and 316 st/st pressure connection or W: 316L stainless steel 1/2" NPT (female) pressure connection with Buna N diaphragm and O-Ring
Pressure parameters . A or B or C or D or F or G or H or 0 or 1 or 2 or 3 or 4 or 5 or 6 or 7 or 8 or 9
UEONLINE J12 Series Datasheet-comprimido.pdf
Download
  • UL, cUL, ATEX and IECEx approved for Div. 1 or Zone1 hazardous locations; CE Compliant
  • Dual seal compliant to ANSI/ISA 12.27.01 & NEC 501.17
  • Many models compliant to NACE MR0175.
  • Snap-acting Belleville spring for long life, vibration resistance and stability
  • Optional Hastelloy* and Monel* sensor material for corrosive media
  • Mounting bracket available for retrofit applications
  •  72" leadwires
  • 3-year warranty
