  2. UE Controls J21k Differential pressure switch Model 127- 150

UE Controls J21k Differential pressure switch Model 127- 150

https://www.doger.com/web/image/product.template/10388/image_1920?unique=0d77ed4

Welded 316L stainless steel bellows with 1/2” NPT (female) pressure connections

The J21K Series is simple to install and operate for alarm, safety and emergency shutdown applications requiring a higher switch sensitivity. It monitors the difference between two system pressures or vacuum using sealed, opposing bellows sensors.

$ 528.00 528.0 USD $ 528.00

528.00 USD

  • Pressure parameters .

Esta combinación no existe.

United Electric Controls
Interruptores de presion, interruptores de temperatura, Termocuplas, RTDs, transmisores de temperatura y presioón, detección de gases

The J21K's rugged design - with epoxy coated enclosure and sealed metal bellows - lends itself to exacting applications. Widely used in refrigeration (chiller) and compressor applications, the J21K can be used for filter status monitoring and proof of flow.





Specifications for UE Controls J21k Differential pressure switch Model 127- 150

Pressure parameters . 127 -Set Point Range: 30 "Hg Vac to 0 psi /Deadband: 0.4 to 0.6 "Hg / Differential Pressure: 15 psi / Working pressure: 30 "Hg Vac to 0 psi or 140 - Set Point Range: 0 to 6 psi /Deadband: 0.1 to 0.4 psi / Differential Pressure: 6 psi / Working pressure: 30 "Hg Vac to 30 psi or 150 - Set Point Range: 0 to 40 psi /Deadband: 0.3 to 0.7 psi / Differential Pressure: 40 psi / Working pressure: 30 "Hg Vac to 180 psi or 16020 - Set Point Range: 1 to 15 psi /Deadband: 0.1 to 0.6 psi /Over Range Pressure: 125 psi / Working pressure: 30 "Hg Vac to 125 psi
No Documents Uploaded
  • Designed to meet Enclosure Type 4X (with watertight conduit fitting)
  • UL listed and cUL certified
  • Optional ATEX and Rostechnadzor (GOST-R) intrinsic safety compliance
  • Optional adjustable deadband
  • Single switch output
  • Opposing bellows design

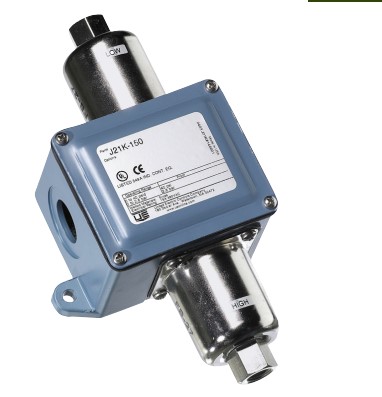

Product Image
UE Controls J21k Differential pressure switch Model 127- 150

$ 528.00 528.0 USD $ 528.00

528.00 USD
