UE Controls 10 series Pressure Switch

https://www.doger.com/web/image/product.template/10385/image_1920?unique=1afa571

Buna-N diaphragm and O-ring with 1/8" NPT (male) brass pressure connection

Available with seven electrical termination varieties, a choice of sensors, and several pressure connections, the 10 Series is designed to meet requirements for a variety of OEM and industrial applications

$ 83.00 83.0 USD $ 83.00

0.00 USD

  • Series 10 Electrical termination type
  • 10 Series Model

Esta combinación no existe.

United Electric Controls
Interruptores de presion, interruptores de temperatura, Termocuplas, RTDs, transmisores de temperatura y presioón, detección de gases

Just 1-1/4 inches in diameter and as small as 3 inches high, this compact, cylindrical switch mounts wherever space is at a premium. A reliable and cost-effective switch, the 10 Series is ideal for applications with high settings and surges. Among the tough applications in which the product has proven itself are: fire suppression systems, mobile hydraulic units, compactors, balers and lube oil systems.

Specifications for UE Controls 10 series Pressure Switch

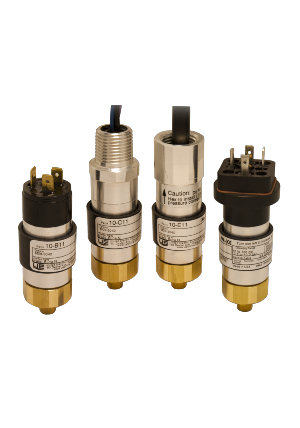

Series 10 Electrical termination type Type A 0.11" push-on terminals. Mating terminals supplied or Type B 0.25" push-on terminals or Type C Enclosure Type 4; 1/2" NPT (male) conduit connection; 20" leads or Type D Enclosure Type 4; 20" leads or Type E Enclosure Type 4; 1/2" NPT (female) conduit connection; 5' cable or Type F IP65 4 terminal DIN connector. Mating part not supplied or Type G Enclosure Type 4; 5' cable
10 Series Model 10 -Set Point Range: 4 to 50 psi /Deadband: 1 to 6 /Over Range Pressure: 1000 psi / Proof pressure: 3000 psi or 11 -Set Point Range: 10 to 150 psi /Deadband: 2 to 10 psi / Over Range Pressure: 1500 psi / Proof pressure: 3000 psi or 12 -Set Point Range: 30 to 600 psi /Deadband: 8 to 60 psi / Over Range Pressure: 2500 psi / Proof pressure: 3000 psi or 13 -Set Point Range: 100 to 1500 psi /Deadband: 20 to 220 psi / Over Range Pressure: 8000 psi / Proof pressure: 10,000 psi or 14 -Set Point Range: 180 to 3000 psi /Deadband: 50 to 400 psi / Over Range Pressure: 8000 psi / Proof pressure: 10000 psi or 15 -Set Point Range: 400 to 4700 psi /Deadband: 100 to 600 psi / Over Range Pressure: 8000 psi / Proof pressure: 10000 psi or 16 -Set Point Range: 4000 to 7500 psi /Deadband: 400 to 950 psi / Over Range Pressure: 10000 psi / Proof pressure: 12000 psi
UEONLINE 10 Series Datasheet.pdf
Download
  • cULus recognized, CE compliant to Low Voltage Directive and Pressure Equipment Directive
  • Optional ATEX intrinsic safety compliance
  •  NPT or SAE threaded pressure connections
  •  Choice of 7 electrical terminations
  • Optional leadwire/cable lengths
  •  Rugged and vibration resistant
  •  Proof pressures up to 12,000 psi (827 bar)
